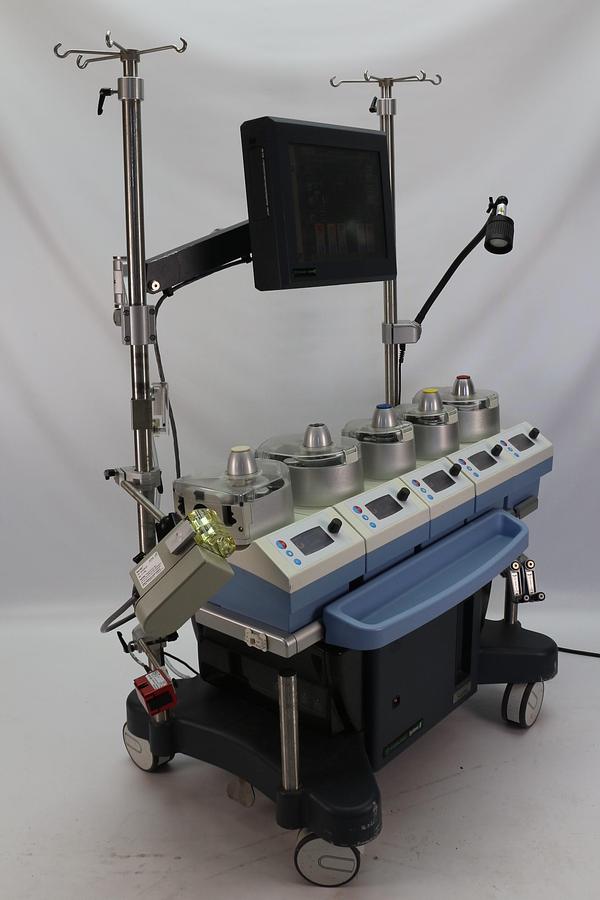

Terumo Advanced Perfusion System 1 Heart Lung Machine

Features

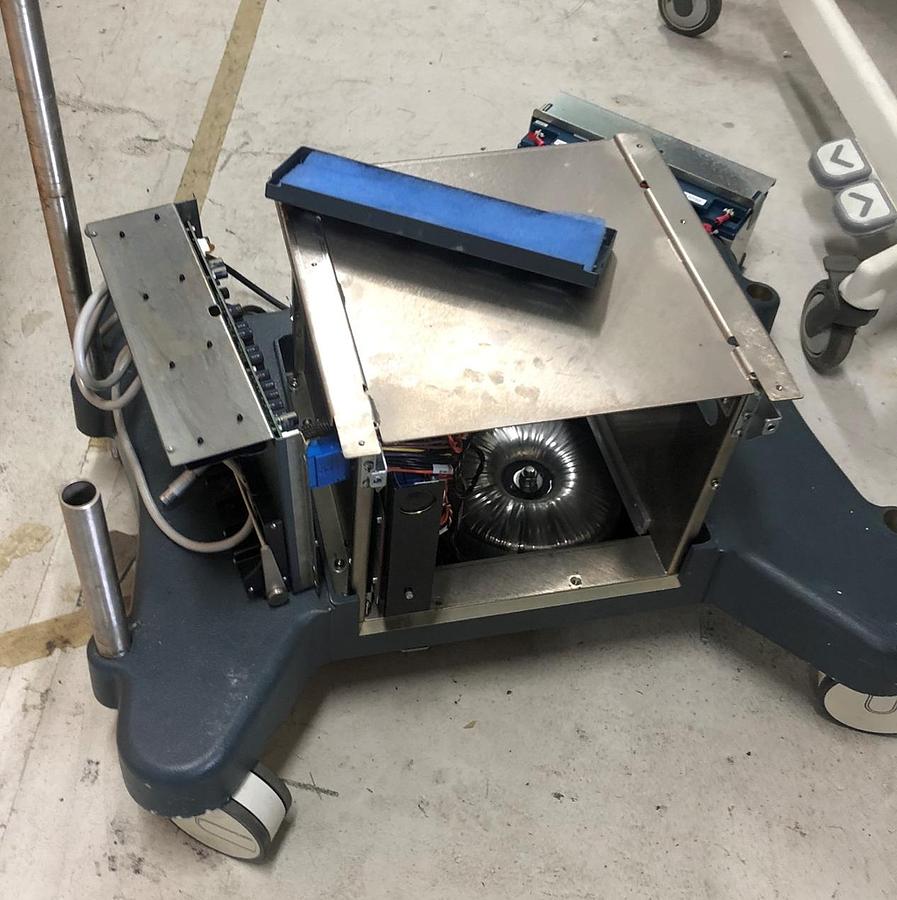

The system base houses the internal network architecture, electronics, power supply components, batteries, communications and power connections and circuit breakers.

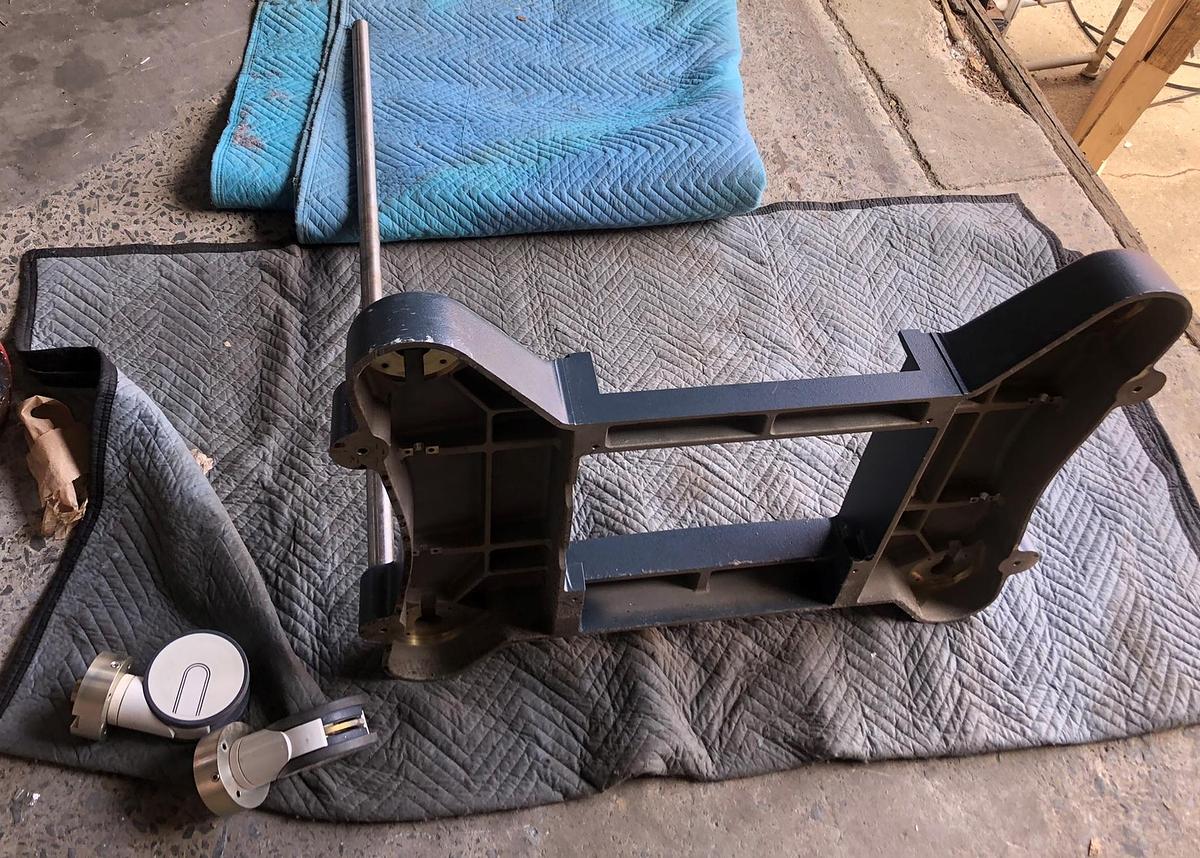

The base has a pair of casters on each side. Each pair of casters has a 3 position locking lever to control the movement of the casters.

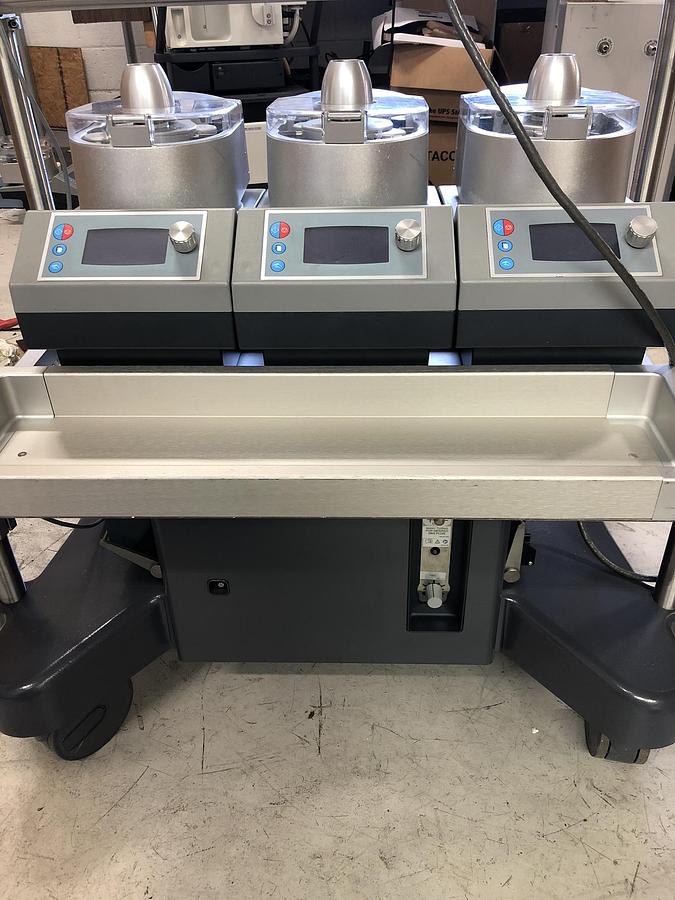

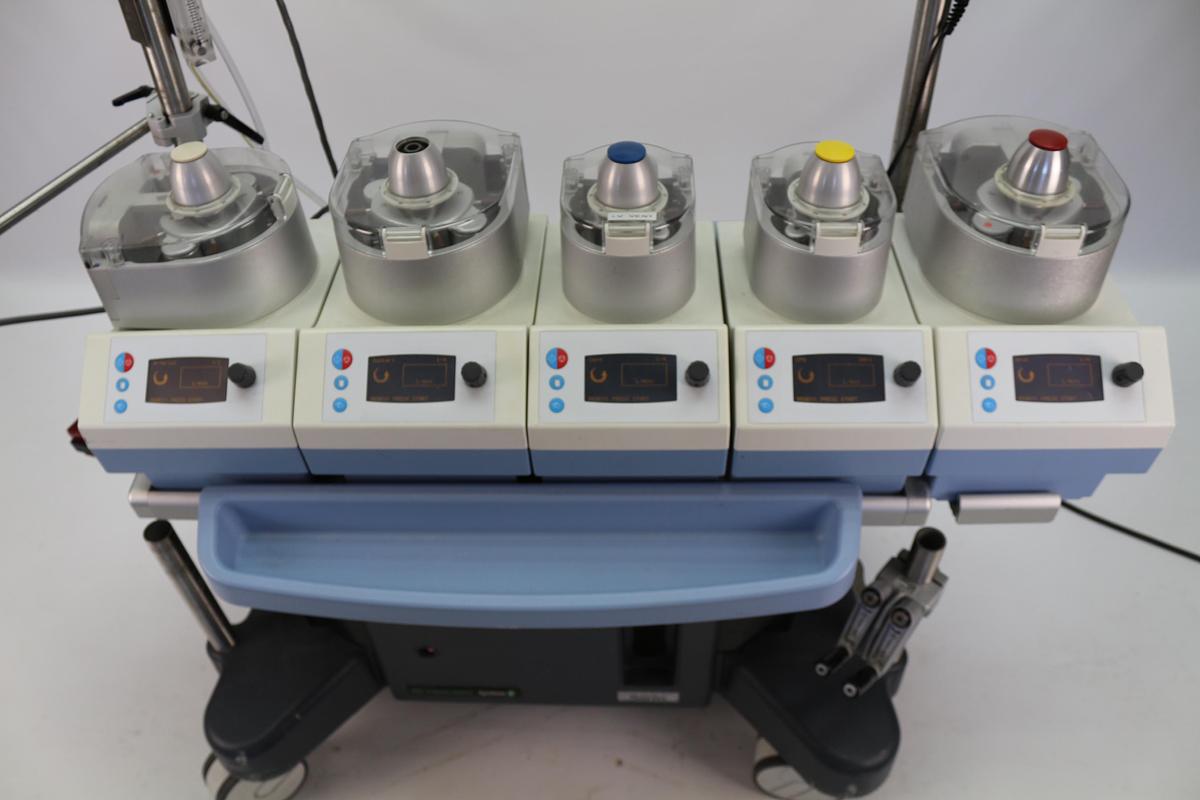

Roller pumps are mounted along a central rail on the top of the base or on the poles with mounting brackets. There are 2 sizes of pump mounting extensions to allow different combinations of large and small pumps to be mounted along the central mounting area.

Cable clips are built in to the mounting area to aid in cable management.

The centrifugal control unit is mounted on the system with a pole mounting bracket. Modules are connected to the receptacles on the sides of the base.

A locking rail protects the modules from accidental disconnection. Protective cover panels are attached to the top and sides of the base after components are installed to protect cables and components from liquid spills.

Long mounting poles are installed on the back corners of the base and short mounting poles are installed on the front corners of the base. A crossbar can be mounted between the 2 longest poles.

A pole-mountable halogen lamp is available in 2 sizes, long or short. A pole-mountable LED lamp is available in one size only.

A hand crank bracket, which holds 2 hand cranks, can be mounted on a pole in a convenient location.

There is an auxiliary outlet on the back of the system base for powering additional equipment.
